Studio-Ready Turntable Isolation Feet
Soundrise Silent Feet are original turntable isolation feet created from scratch to reduce footsteps and floor vibration that can cause a stylus to skip. After we shared the original prototype online and saw strong interest, we developed them into an evolving 3D-printed product.

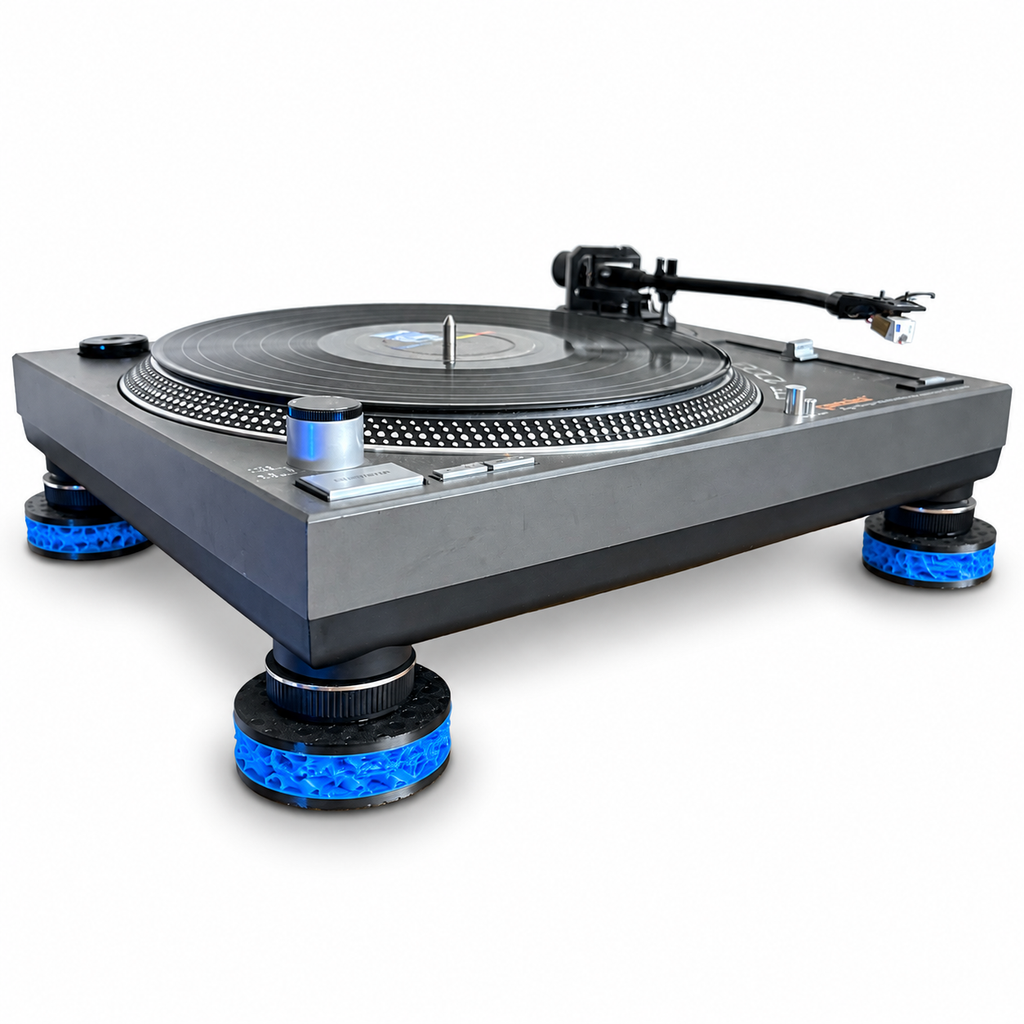

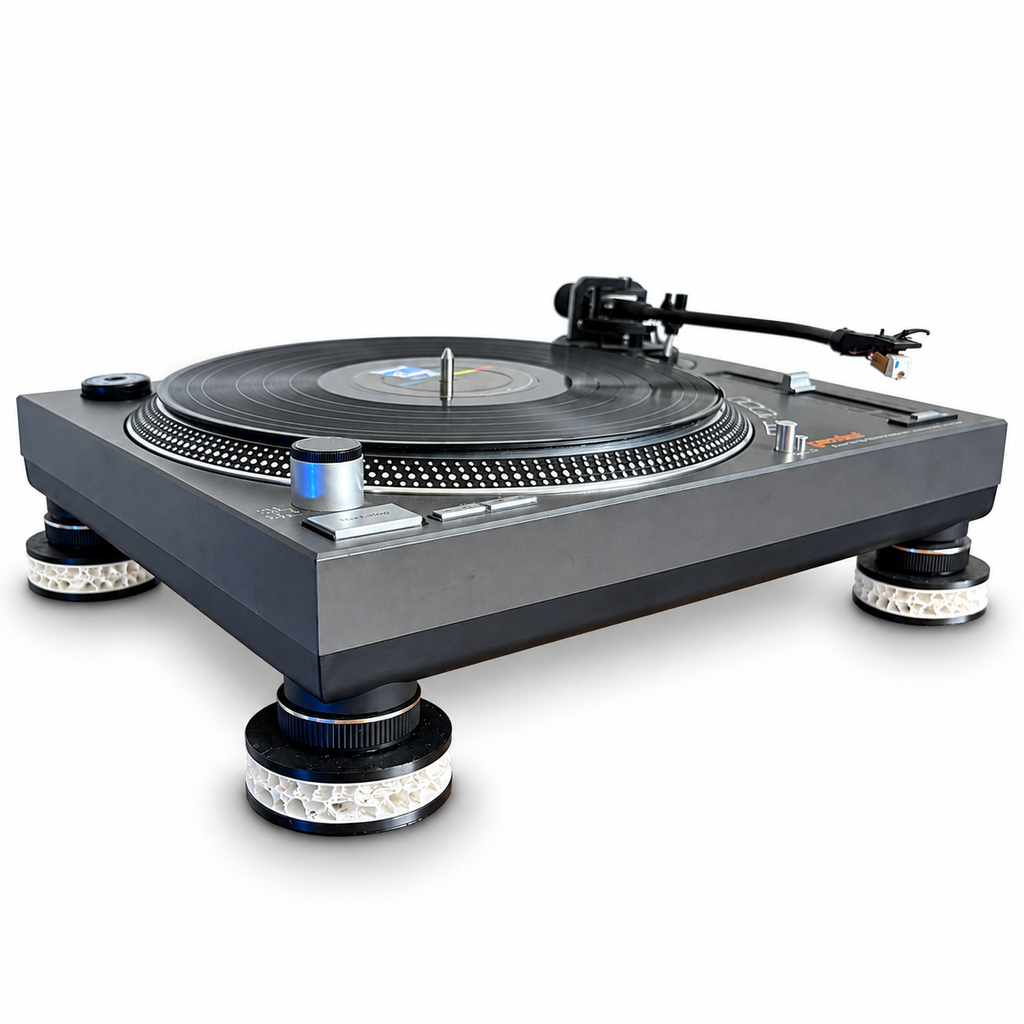

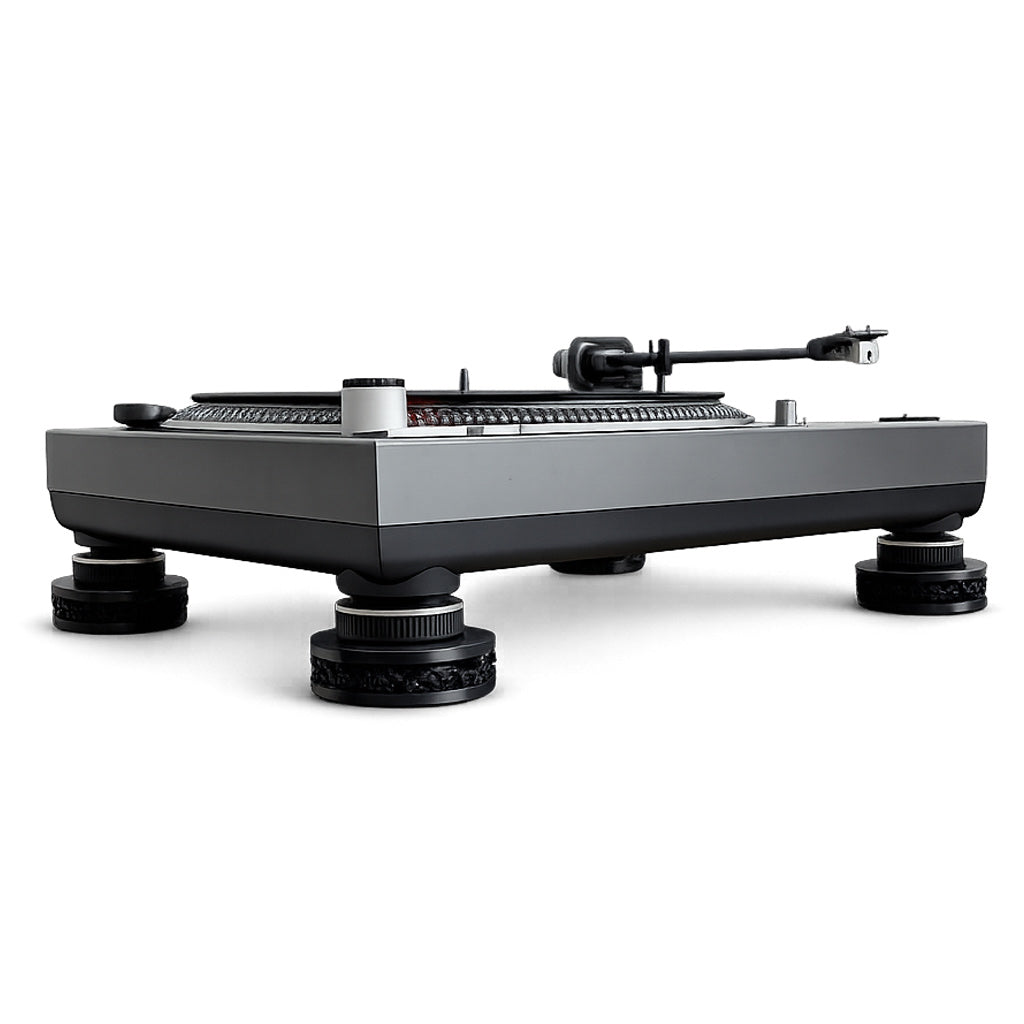

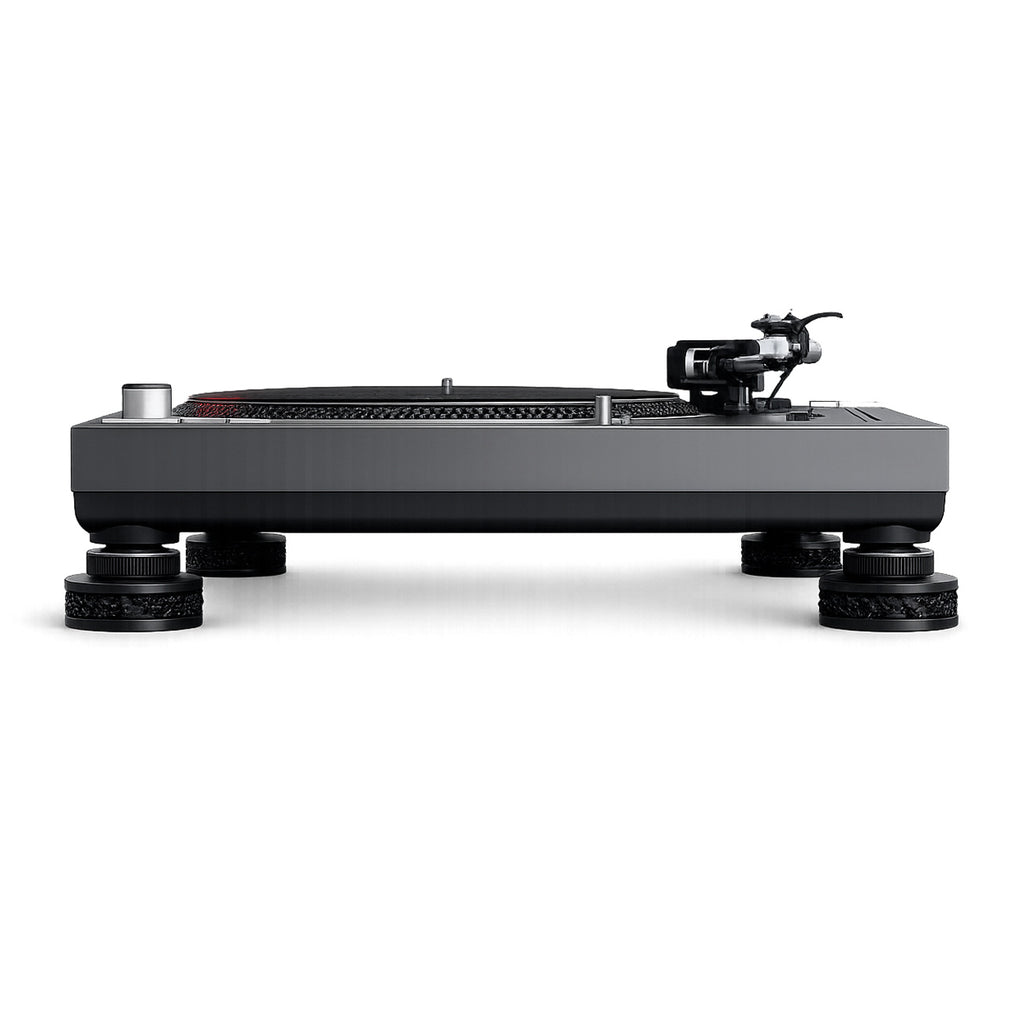

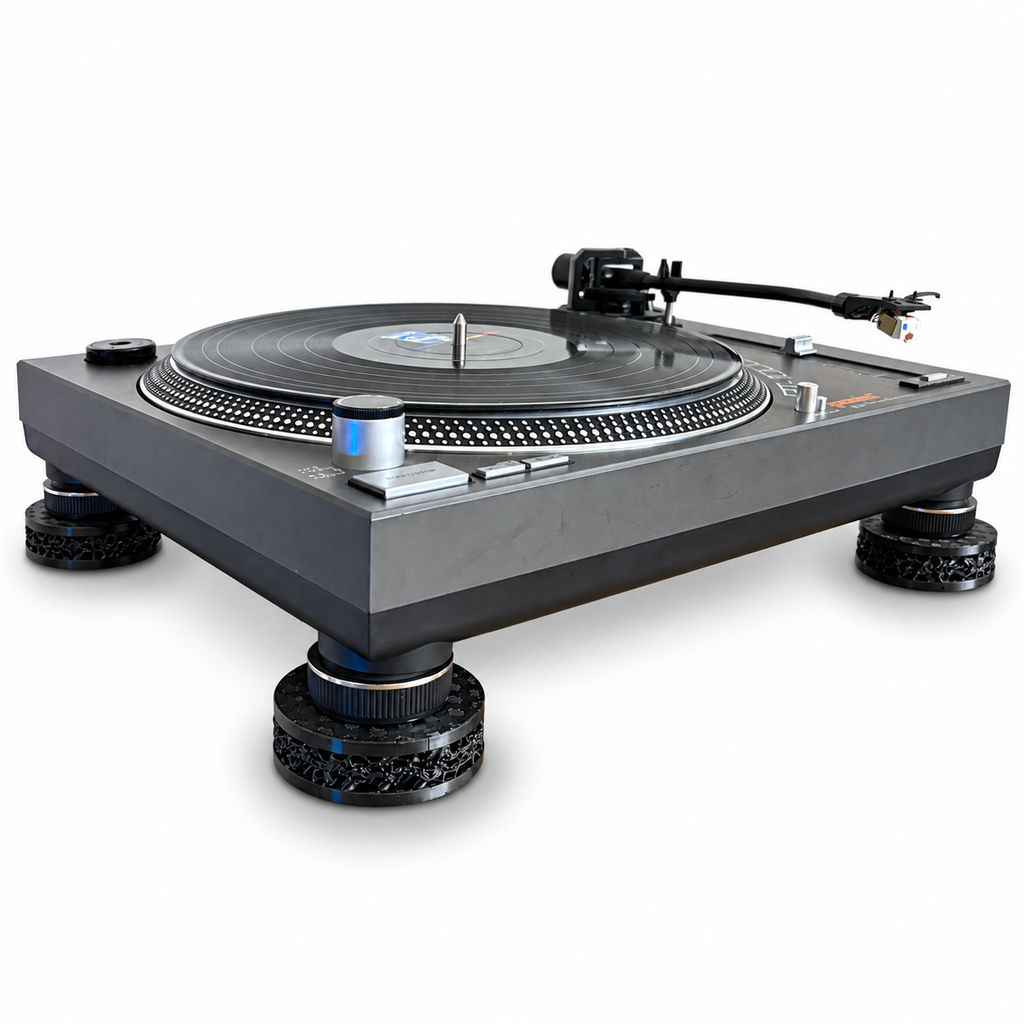

Each set includes four vibration-dampening pads designed for HiFi turntables weighing 12 to 28 pounds (5 to 13 kg). A specially tuned, exposed internal cushioning structure helps isolate your record player from footsteps.
These turntable isolation feet can also help decouple studio monitors and CD players, reducing unwanted vibration and helping control feedback during club gigs or in home audio systems.

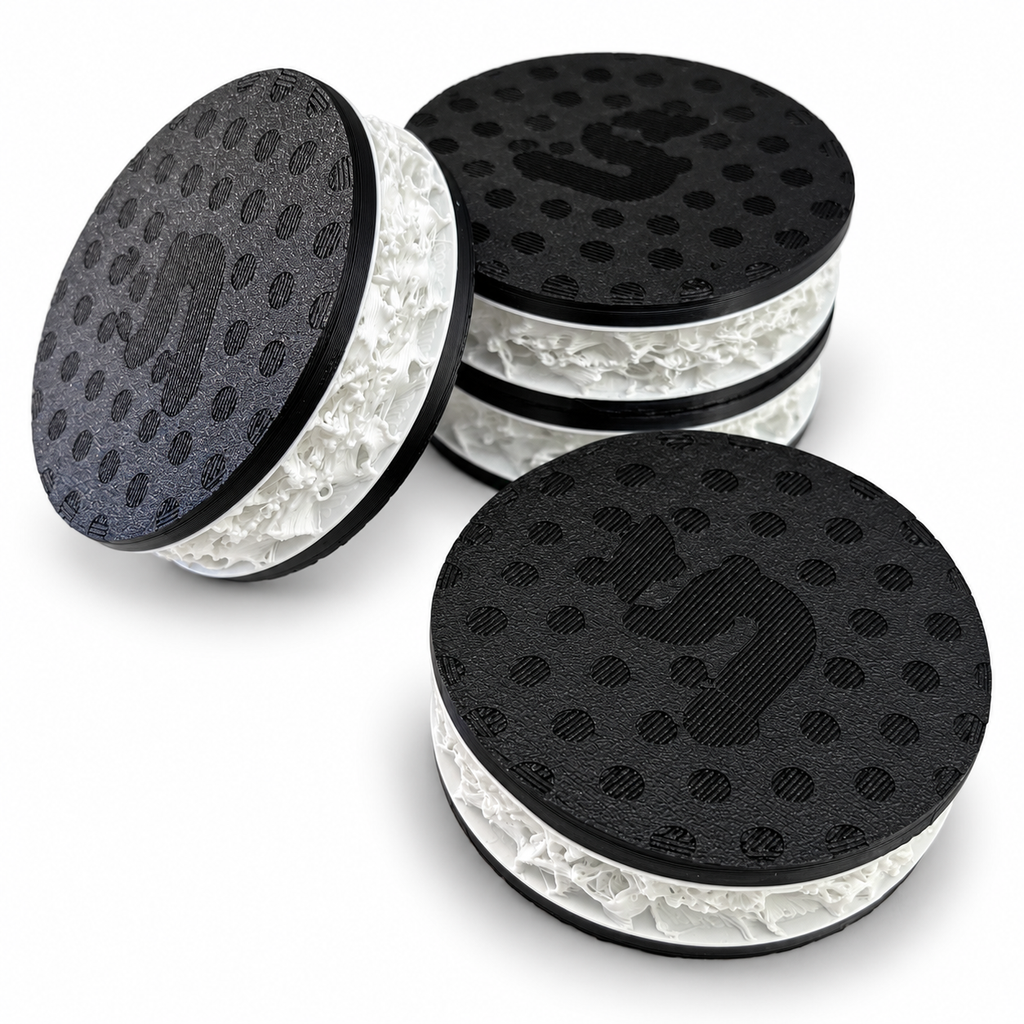

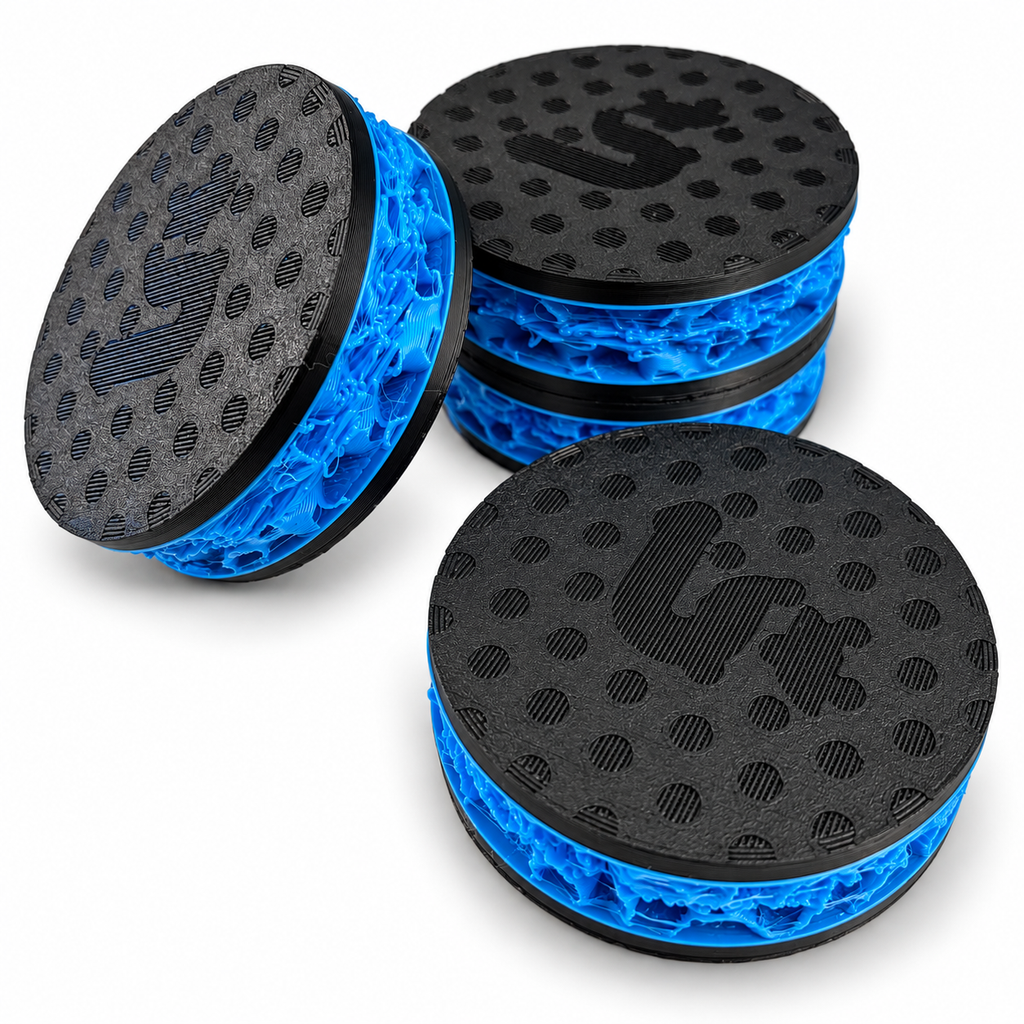

Set includes: 4 Silent Feet
Dimensions: 3 inches (77 mm) diameter × 0.9 inches (23 mm) high
Recommended turntable weight: 12–28 pounds (5–13 kg)
B-Stock Silent Feet are the same record player vibration dampeners but at a lower price due to minor cosmetic 3D-print flaws.

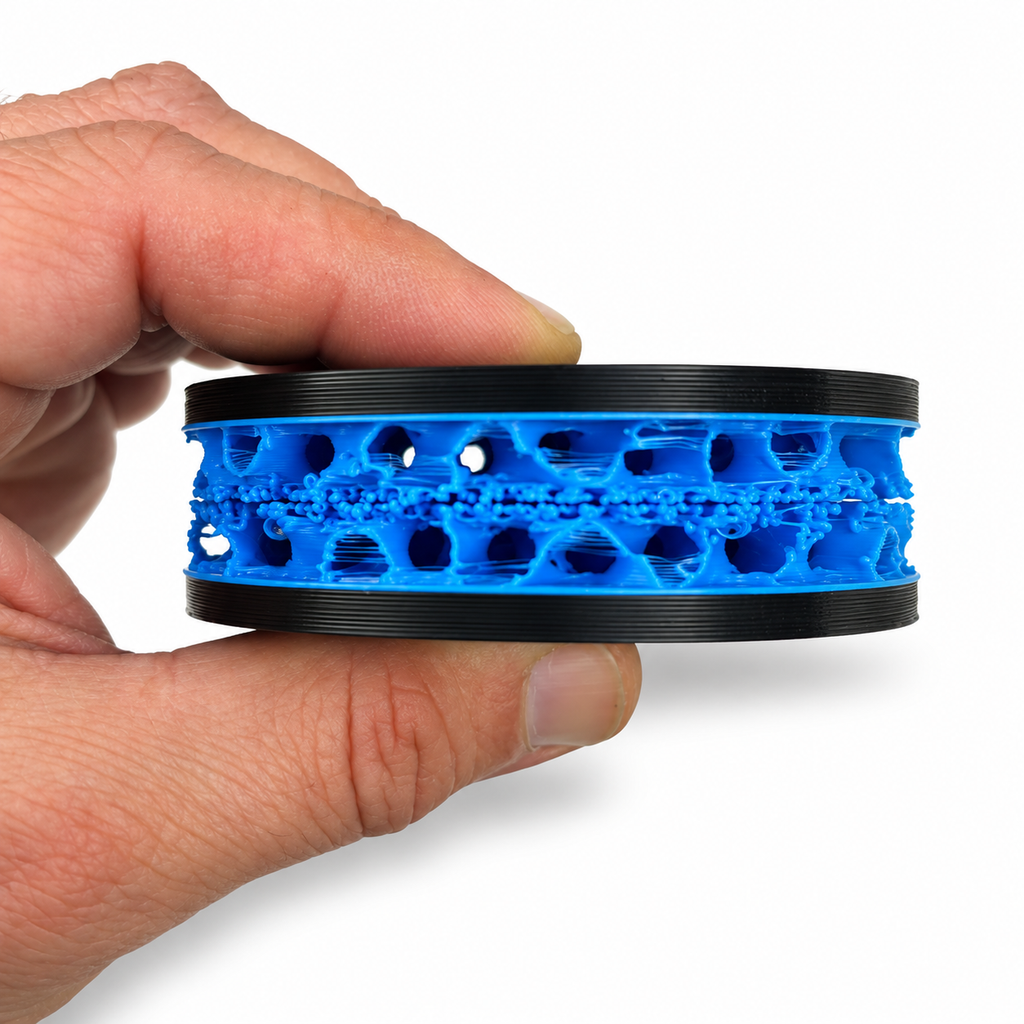

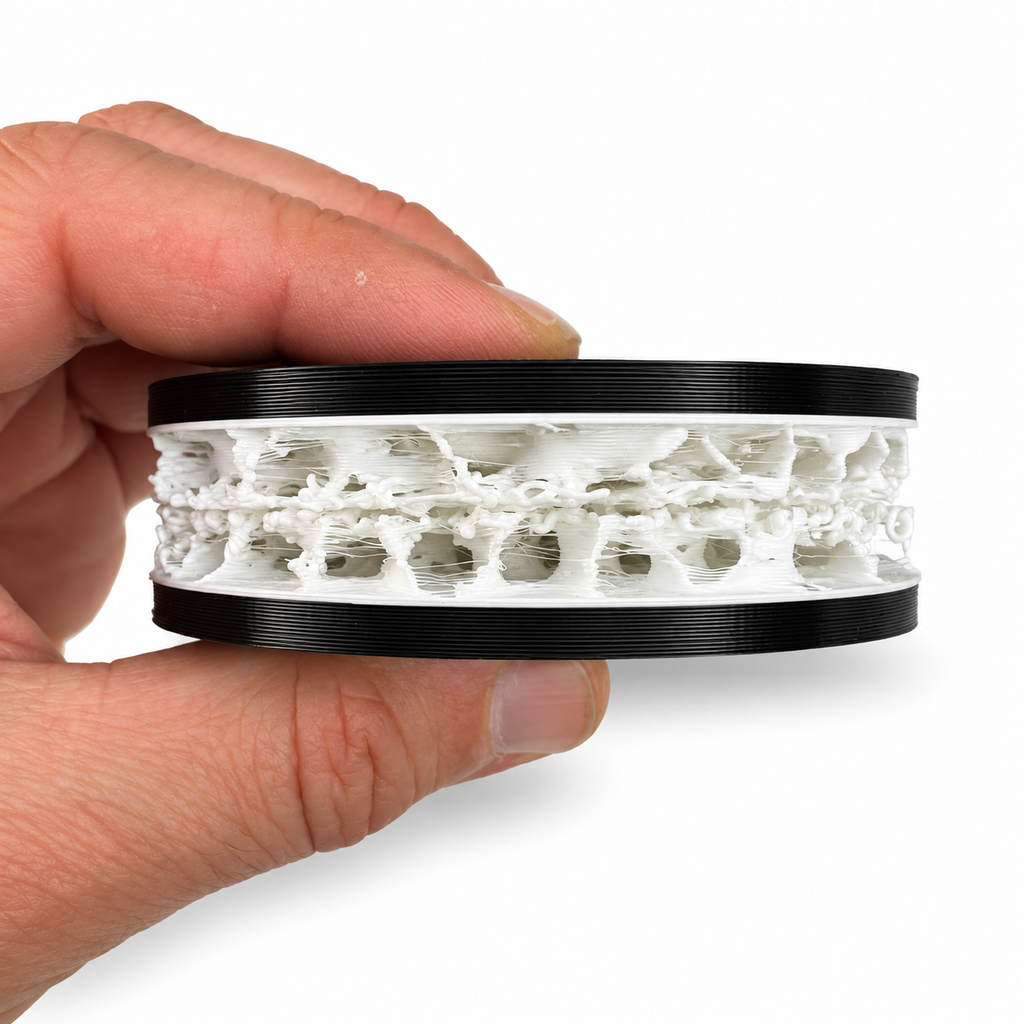

Performance comes from tuning the internal infill rather than printing a solid foot. A flexible gyroid structure inside a rigid housing is designed to behave like the steel-spring isolators. The cushioning structure is printed in Shore 90A TPU, while PETG top and bottom plates help distribute the turntable’s weight and maintain stability.
With a 12.5 kg turntable, Silent Feet are designed to compress 2–3 mm, or about 10–12 percent, aligning with elastomer deflection guidelines. Coil pitch, wall thickness, infill density, and material hardness can all affect stiffness. If a prototype compresses too little, reducing structural thickness or infill can increase flexibility. If it compresses too much, increasing thickness or using a firmer TPU can add support. This research and testing helps balance vibration absorption, stability, and everyday use.
